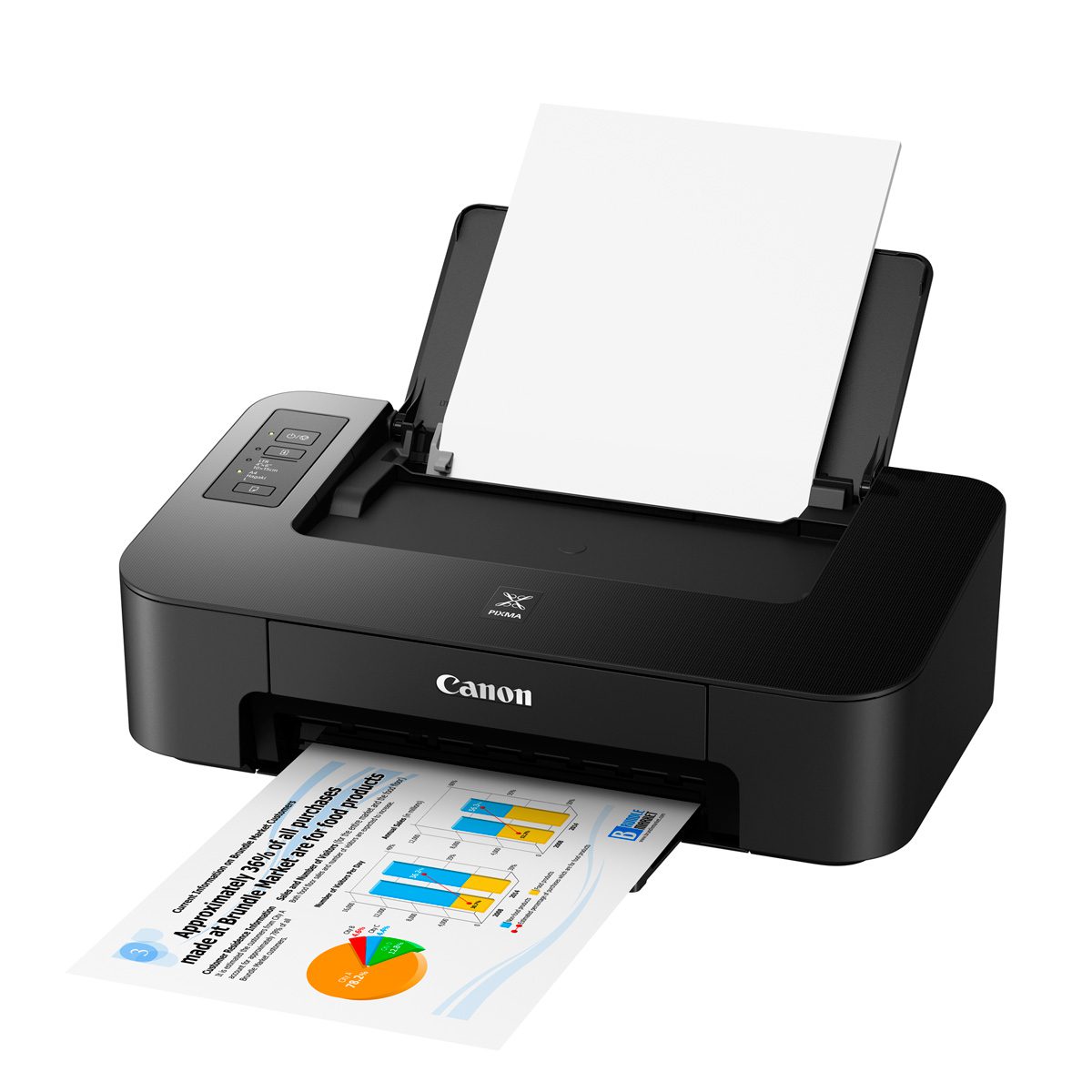

Canon PIXMA TS207 Printer (Print only)

Stylish and Compact Printer with Low-Cost Cartridges
PIXMA TS207 features a scratch and fingerprint-resistant surface, performing as well as it looks.

Print
ISO Standard print speed (A4): up to 7.7 ipm black / 4.0 ipm colour
Hi-speed USB 2.0
Recommended monthly print volume: 10 – 80 pages

Print – Print Head / Ink

Type

FINE Cartridge

Number of Nozzles

Total 1,280 nozzles

Ink Cartridges

PG-745S, CL-746S (Optional: PG-745, CL-746 / PG-745XL, CL-746XL)

Maximum Printing Resolution*1

4800 (horizontal)*2 x 1200 (vertical) dpi

Print Speed*2
Based on ISO / IEC 24734.
Click here for summary report
Click here for Document Print Measurement Conditions

Document: Col

ESAT / Simplex: Approx. 4.0 ipm

Document: B/W

ESAT / Simplex: Approx. 7.7 ipm

Photo (4 x 6″)

PP-201 / Borderless: Approx. 65 sec

Printable Width

Up to 203.2 mm (8 inch)

Printable Area

Borderless Printing*3

Top / Bottom / Right / Left margin: each 0 mm
(Supported Paper Size: 4 x 6″)

Bordered Printing

Top margin: 3 mm, Bottom margin: 5 mm,
Left / Right margin: each 3.4 mm (LTR: Left: 6.4 mm, Right: 6.3 mm)

Recommended Printing Area

Top margin: 31.6 mm / Bottom margin: 29.2 mm

Paper Size

A4, LTR, 4 x 6″, 5 x 7″, Custom size (width 89 – 215.9 mm, length 127 – 676 mm)

* F4 is possible via custom size settings.

Paper Handling
(Rear Tray)
(Maximum Number)

Plain Paper

A4, LTR = 60

Photo Paper Plus Glossy II
(PP-201)

4 x 6″ = 20

Glossy Photo Paper “Everyday Use”
(GP-508)

4 x 6″ = 20

Photo Paper Plus Glossy II
(PP-208)

4 x 6″ = 20

Photo Sticker (Free cutting)
(PS-208)

4 x 6″ = 1

Photo Sticker (Free cutting, Removable)
(PS-308R)

4 x 6″ = 1

Rear Tray

Plain Paper: 64 – 105 g/m², Canon specialty paper: max paper weight: approx. 275 g/m²(Photo Paper Plus Glossy II (PP-201))

Ink End Sensor

Dot count

Print Head Alignment

Manual

System Requirements
(Please visit www.canon-asia.com to confirm OS compatibility and to download the latest driver updates)

Windows:

Windows 10, Windows 8.1, Windows 7 SP1

Macintosh:

Mac OS X 10.10.5 ~ 10.11, Mac OS 10.12*
* via AirPrint

General Specifications

Interface

USB 2.0 Hi-Speed

Operating Environment*4

Temperature:

5 – 35°C

Humidity:

10 – 90% RH (no dew condensation)

Recommended Environment*5

Temperature:

15 -30°C

Humidity:

10 – 80% RH (no dew condensation)

Storage Environment

Temperature:

0 – 40°C

Humidity:

5 – 95% RH(no dew condensation)

Quiet Mode

Available

Acoustic Noise (PC Print)

Photo (4 x 6″)*6

Approx. 46.0 dB(A)

Power

AC 100 – 240 V, 50/60 Hz

Power Consumption

OFF

Approx. 0.2 W

Standby (scanning lamp is off)
(USB Connection to PC)

Approx. 1.2 W

Standby (all ports connected, scanning lamp is off)

Approx. 0.9 W

Printing*7

Approx. 10 W

Environment

Regulation

RoHS (EU, China), WEEE (EU)

Dimension (W x D x H)

Factory configuration

426 x 255 x 131 mm

Output / ADF trays extended

426 x 562 x 213 mm

Weight

2.5 kg
